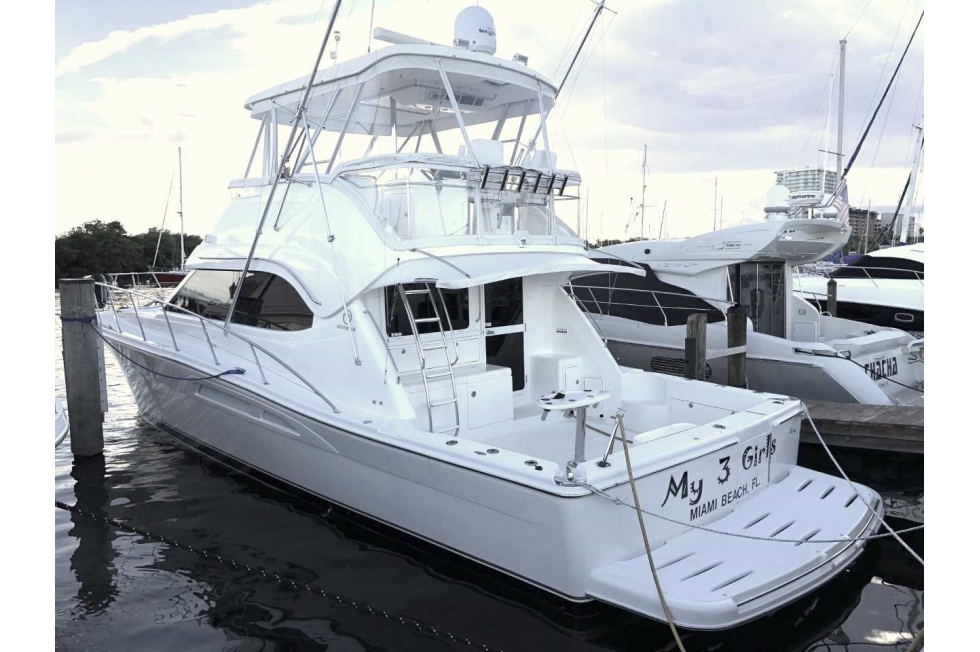

2006 Riviera 47 Riviera Series II Flybridge (53'1

"My 3 Girls" is truly turn key and ready for it's new owner.

Since 1980 Riviera has dominated the Global Sport Yacht market, including becoming Australia's #1 and most awarded Yacht brand. This 47' Luxury Sport yacht is a beautiful representation of the quality and reliability that is Riviera. It boasts a spacious  16' beam cabin with full galley, salon , and dining area. The 3 cabins, and the let out sofa in the salon, comfortably allow for extended stays for groups of 8, and entertainment space for much more. It is a perfect yacht for entertainment and sport, and has been meticulously maintained by it's owner.

Optional equipment installed:

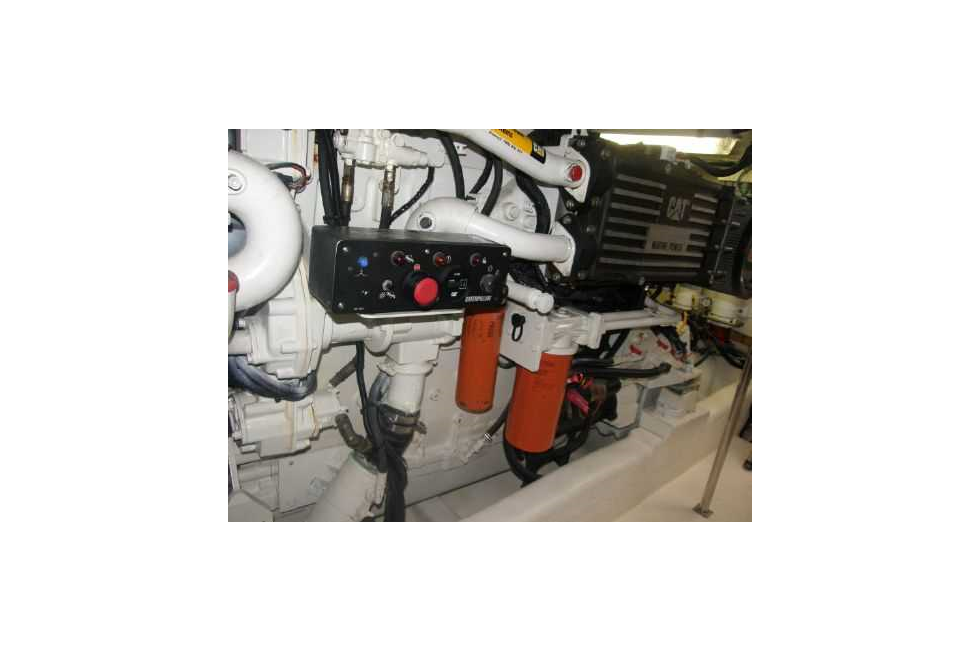

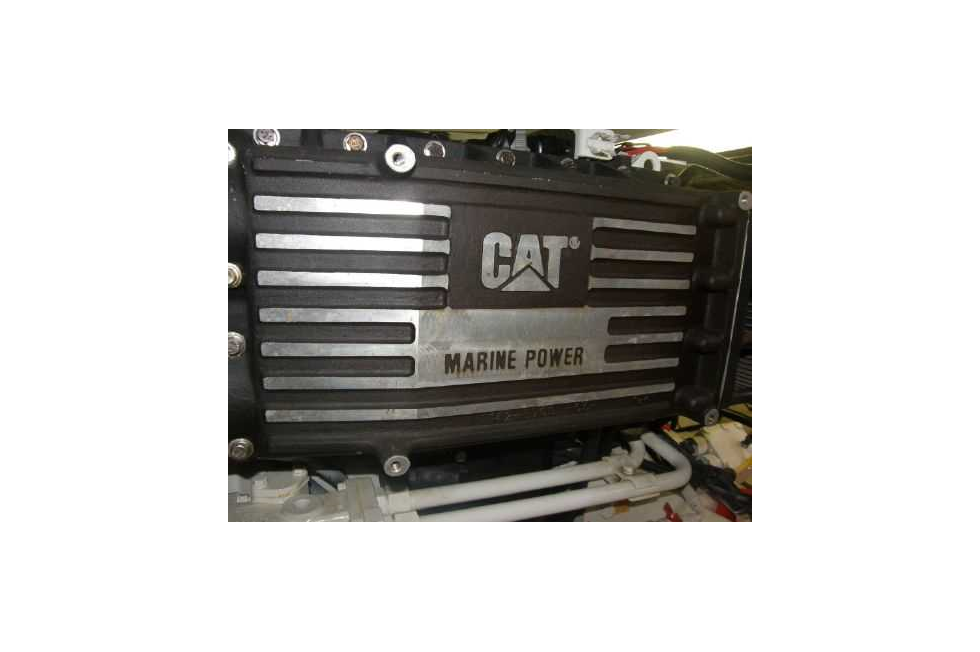

• BIG POWER OPTION Caterpillar C12  (700 current hours).
• Extra fuel option (additional 400 Gal)
• Veem 5 blade props
• Bow thruster.

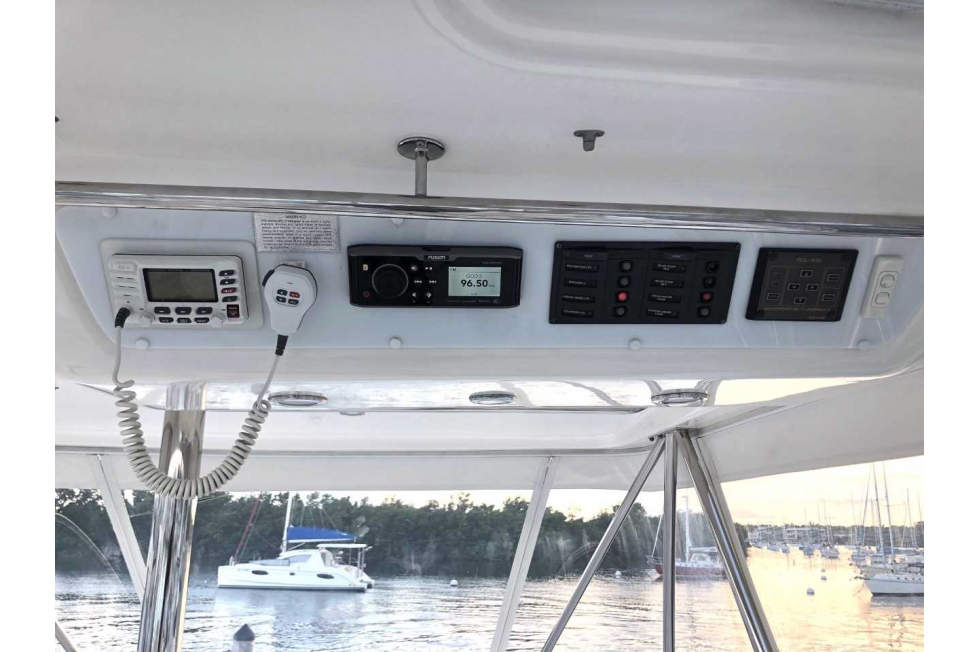

• Raymarine E120; Simrad AP-26; Uniden VHF ES-UN525; Simrad Depth Sounder.
• Sea Tel Satellite.
• Air Conditioning in the Flybridge.
• Amtico flooring to salon and galley.
• Samsung TV with Bose system and  Clarion AM/FM CD.
• Sofa bed in the salon.
• Full Galley with U-Line Refrigerator, Sony Microwave/Convection, Trash Compactor.
• Washer Dryer Combo.

• View Option
• Grid view
• List view

Boat Name

My 3 Girls

Specs

Builder: Riviera

Designer: Rivieira

Flag of Registry: United States

Hull Shape: Deep Vee

Dimensions

LOA: 47 ft 0 in

Beam: 16 ft 1 in

Maximum Draft: 4 ft 5 in

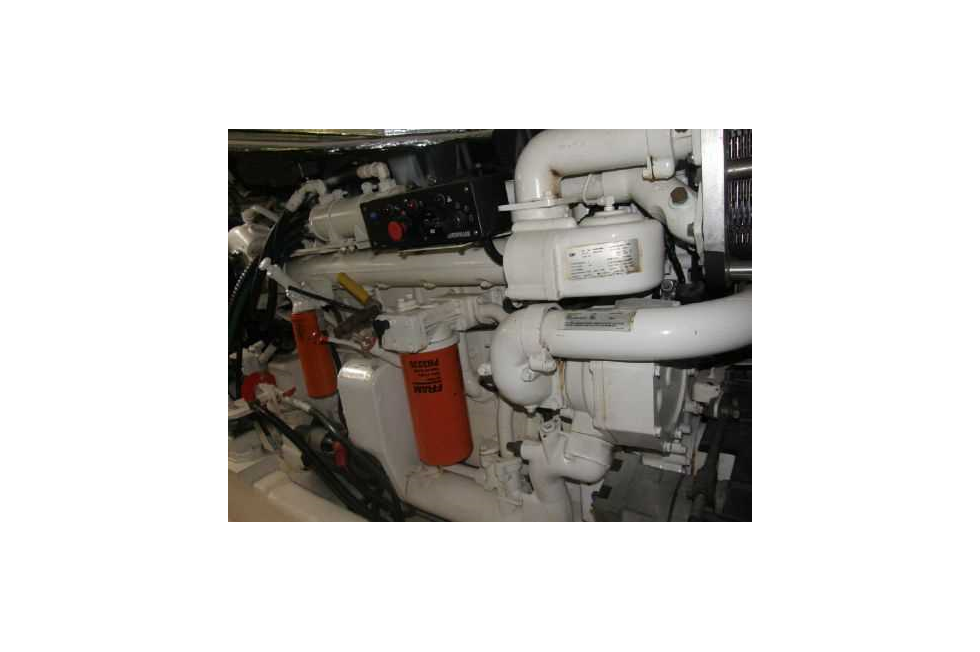

Engines

Engine 1:

Engine Brand: Caterpillar

Year Built: 2006

Engine Model: C12

Engine Type: Inboard

Engine/Fuel Type: Diesel

Location: Port

Engine Hours: 640

Drive Type: Direct Drive

Engine Power: 700 HP

Engine 2:

Engine Brand: Caterpillar

Year Built: 2006

Engine Model: C12

Engine Type: Inboard

Engine/Fuel Type: Diesel

Location: Starboard

Engine Hours: 640

Drive Type: Direct Drive

Engine Power: 700 HP

Tanks

Fresh Water Tanks: 1 Plastic (164 Gallons)

Fuel Tanks: 2 Fiberglass (550 Gallons)

Holding Tanks: 1 Plastic (40 Gallons)

Accommodations

Number of single berths: 2

Number of double berths: 3

Number of cabins: 3

Number of heads: 2

Outside Equipment/Extras

Electric windlass

Dimensions

Displacement: 43200

• CONSTRUCTION • Hand laid, moulded fibreglass hull, cored deck and flybridge
• Independent compartments throughout hull
• Isophthalic gelcoat exterior (white)
• Solid reinforced GRP keel, chines and hull bottom
• Vinylester resin in first outer layer of hull
• Watertight collision bulkhead forward

• GENERAL SPECIFICATIONS • All stainless steel exterior fastenings 316 marine grade
• All stainless steel mirror finish with ground and polished welds
• Antifouling: 2 coats epoxy undercoat, 2 coats antifoul
• Fire extinguishers

• MECHANICAL • Acoustic & thermal insulation
• Airconditioning: 24,000 BTU, 16,000 BTU and 10,000 BTU condenser unit
• All through hull fittings on or below the water line fitted with ball valves, all hoses double clamped
• Bilge pumps, auto & manual override x 3
• Bow thruster 8HP with controls to helm/s
• Emergency rudder locking pins
• Engine hatches insulated & removable
• Engine mounts - anti vibration

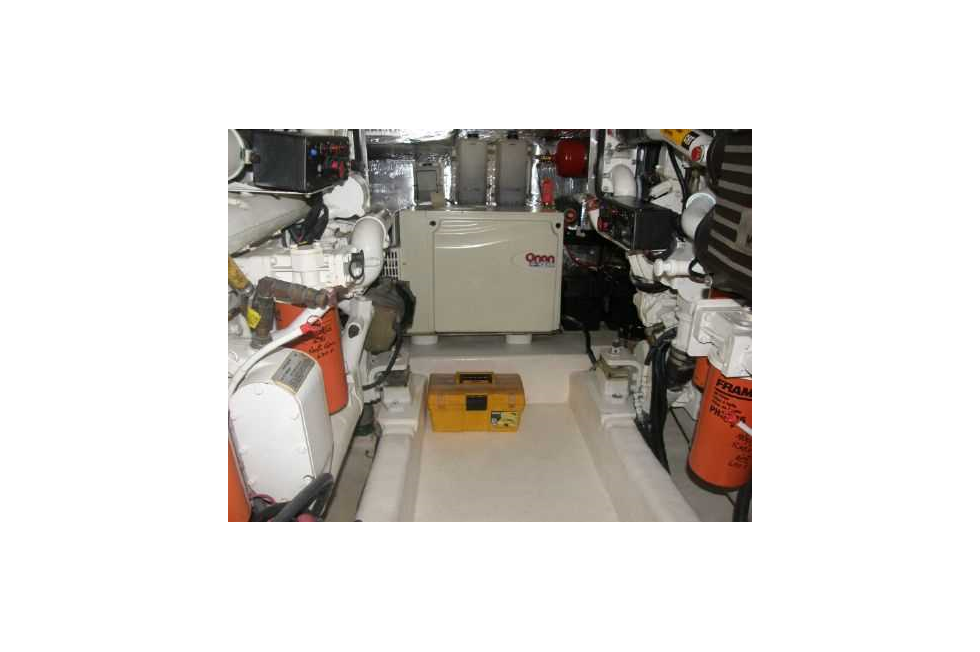

• Engine room access with ladder
• Engine room flowcoated white
• Engine room lighting AC and DC
• External & internal seawater strainers for main water intakes -engines, generator & air conditioning
• Fibreglass aqualift exhaust system for engines / underwater outlet and bypass
• Fibreglass aqualift exhaust system for generator
• Fire suppression system for engine room with automatic/manual controls
• Fresh water heater - AC & heat exchange
• Fresh water system (pressurised) with dual water tanks, total capacity 620 Litres (164 US gallons)* (approx) with gauge in galley
• Fresh water tap & hose set in engine room
• Fuel lines all swaged
• Fuel shut-off valves with emergency remote to cockpit
• Fuel tank gauge at helm
• Fuel tank, GRP coated in fire retardant white, 2700 litres (712 US gallons) (approx) with sight gauge
• Holding tank capacity 151 litres (40 US gallons)
• Hydraulic steering
• Oil change system to main engines and genset
• Propellers, nibral five blade (x2)
• Rudders – aluminium bronze (x2) with zinc anodes
• Shafts duplex stainless (x2) with dripless PSS seals
• Struts aluminium bronze
• Trim Tabs - electric
• Vacuflush sanitation system with switch at helm for overboard pump out and deck fitting for dockside pump out
• Venting dorade system for engine air intakes with mist eliminators

• ELECTRICAL • Alternators - independent start bank and independent house bank
• Batteries (maintenance free) - Independent port & stbd start (total x 4), House (x2) and Genset start (x1)
• Battery banks individually isolated
• Battery chargers, automatic-70 AMP/12VDC and 20 AMP/24VDC
• Battery paralleling system for emergency engine starting
• Bonding system, to all metallic hull fittings under the water line with zinc anode including galvanic isolator

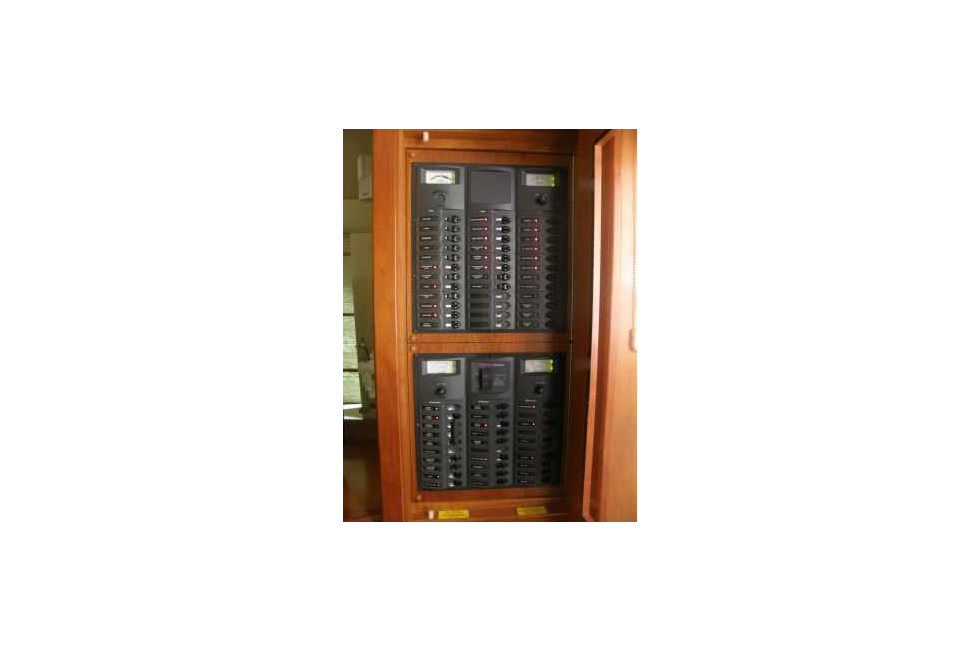

• Electrical control centre with back lighting AC/DC thermal/magnetic circuit breakers, voltmeters, amp meter
• Engine monitoring including instrumentation, alarms and hour meters
• Engine room lighting (AC) and (DC)
• Generator - Onan EQD 11 kw/50Hz (13.5kw/60Hz) with muffler, fresh water-cooled including sound shield, remote stop/start electronic, hour meter
• Navigation lights (international standard)
• Wiring coded, numbered & loomed

• AUDIO/VISUAL • Flybridge - AM/FM Stereo CD player with 4 speakers to flybridge
• Master stateroom - (Forward) - AM/FM/CD player including 2 speakers
• Saloon – Bose Lifestyle system, located on top of the liquior cabinet, including amplifier & sub woofer, 5 speakers in saloon and 2 speakers in cockpit

• REGIONAL SPECIFICATION AMERICAS • AC power outets (doubles) to all staterooms, heads, galley, saloon, Cablemaster shore power lead retractor (220V/50 amp split 2 x 110v)
• Outlets with Ground Fault Circuit Interrupter (GFCI) protection
• Vessel AC system built to 110V/60Hzflybridge and engine room

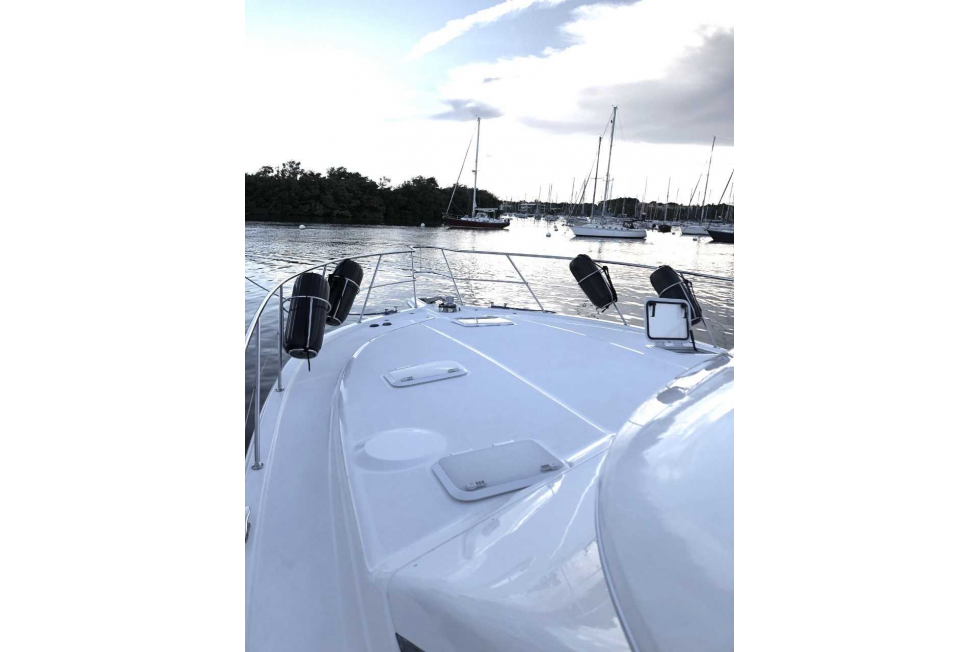

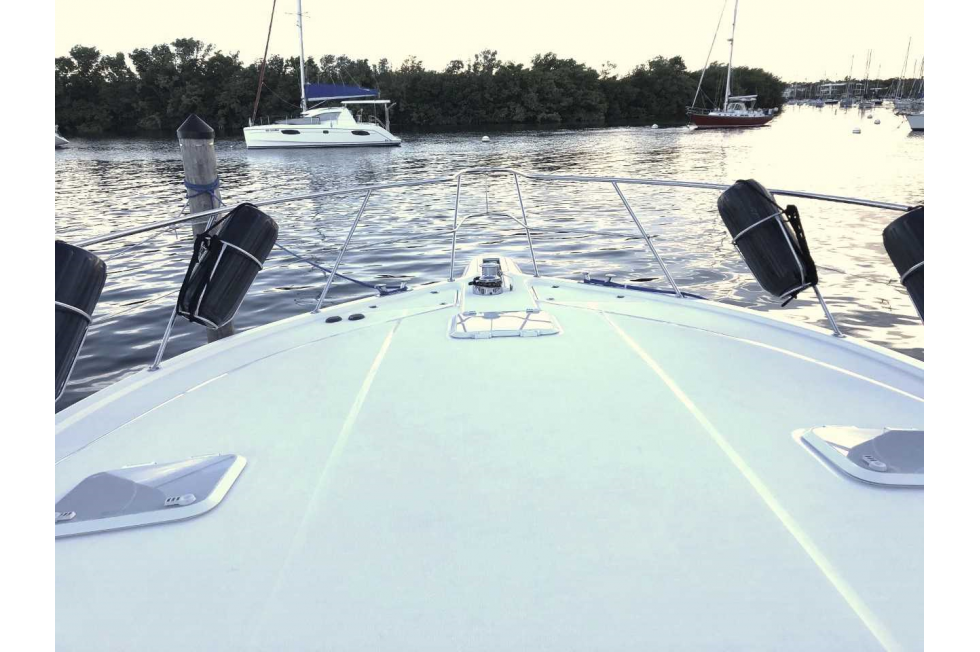

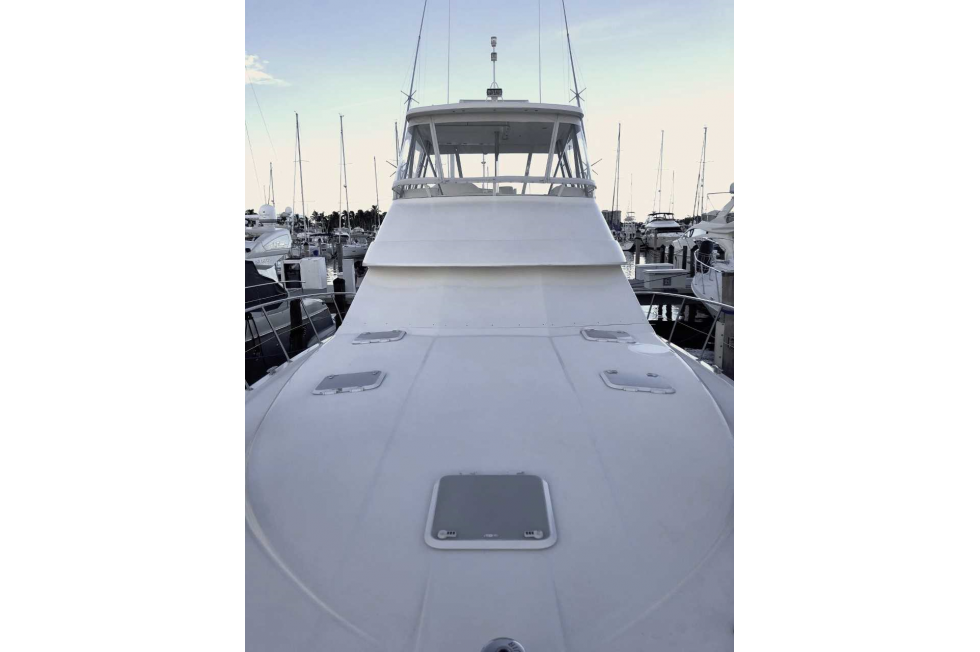

• DECK • Anchor 27kg (60lb), 70m (230ft) of 10mm (3/8'') galvanized chain
• Anchor chain chafe plate fitted to bow sprit
• Anchor locker with rope/chain divider (offset to stbd). Access from hatches on deck
• Anchor safety strap
• Anchor winch vertical with overload protection circuit breaker, suit rope & chain, up & down foot switches & remote to helm
• Bow rail welded stainless steel (316 marine grade, highly polished) with mid safety wire including flag staff and burgee (bow flag)
• Bow roller stainless steel self-loading with secondary rope roller
• Cleats - stainless steel, 11'' (x6), Bollards 12'' (x2), pop-up (x2)
• Deck hatches x5 (lockable)
• Fender holders (x 4) to Bow Rail (not available with lower helm)
• Moulded non-skid gelcoat deck surfaces
• Rails port & starboard of flybridge above window for safe passage to forward deck
• Rub rail - impact and UV resistant PVC (white) with stainless steel insert strip
• Wash down tap (sea water) at anchor locker

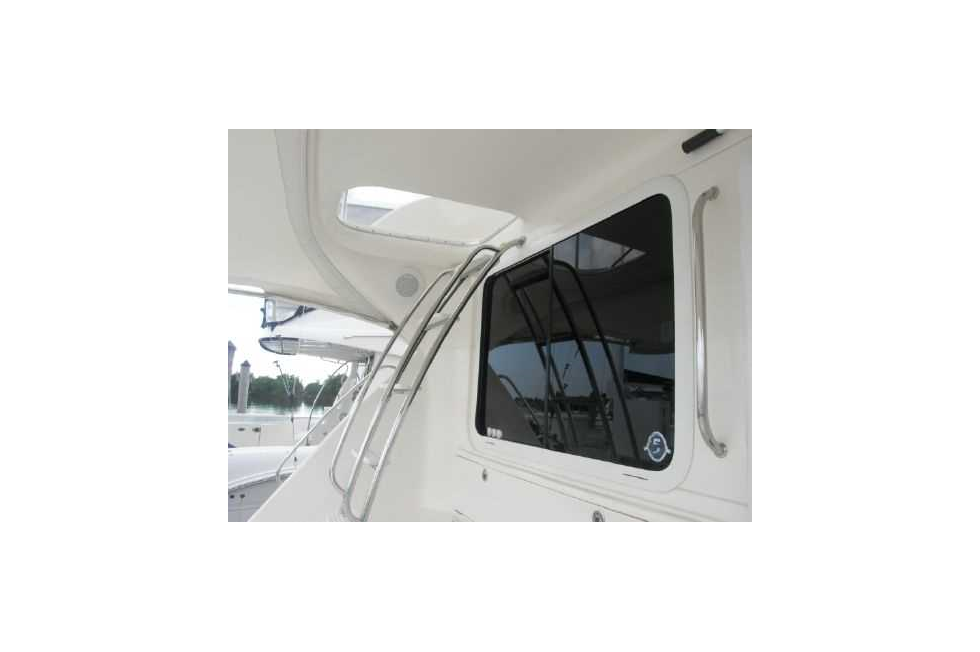

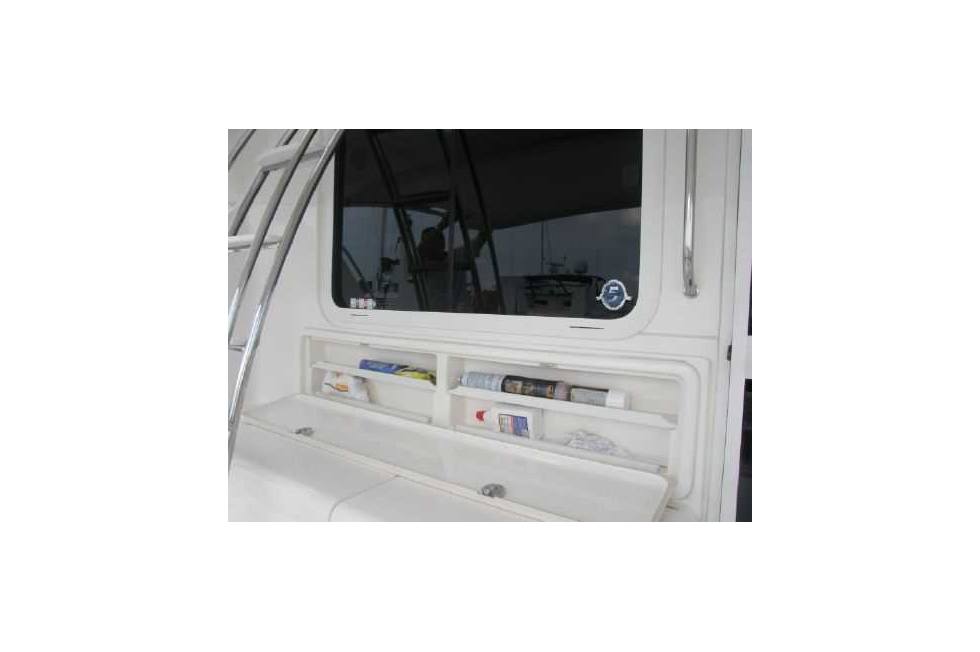

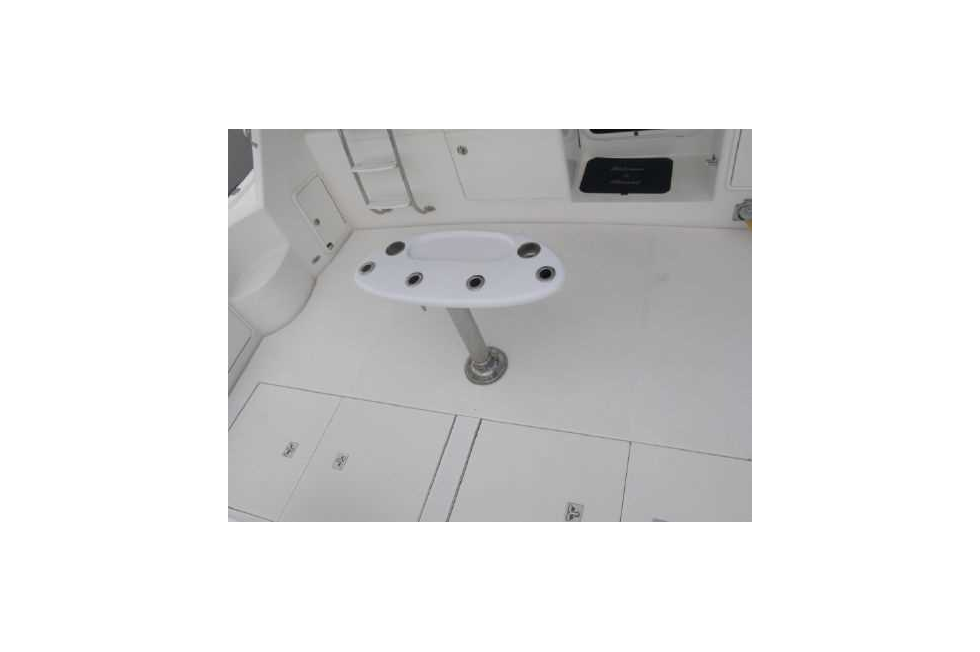

• COCKPIT • Access ladder to flybridge
• Cockpit floor reinforced with alloy plate for future game chair or table
• Cockpit hatches with heavy-duty stainless steel lock downs and gas struts for lazarette storage and bilge access
• Cool box portside, refrigerated, top loading with lid & gas strut
• Door to Saloon - tinted tempered glass
• Double action manual bilge pump for engine room

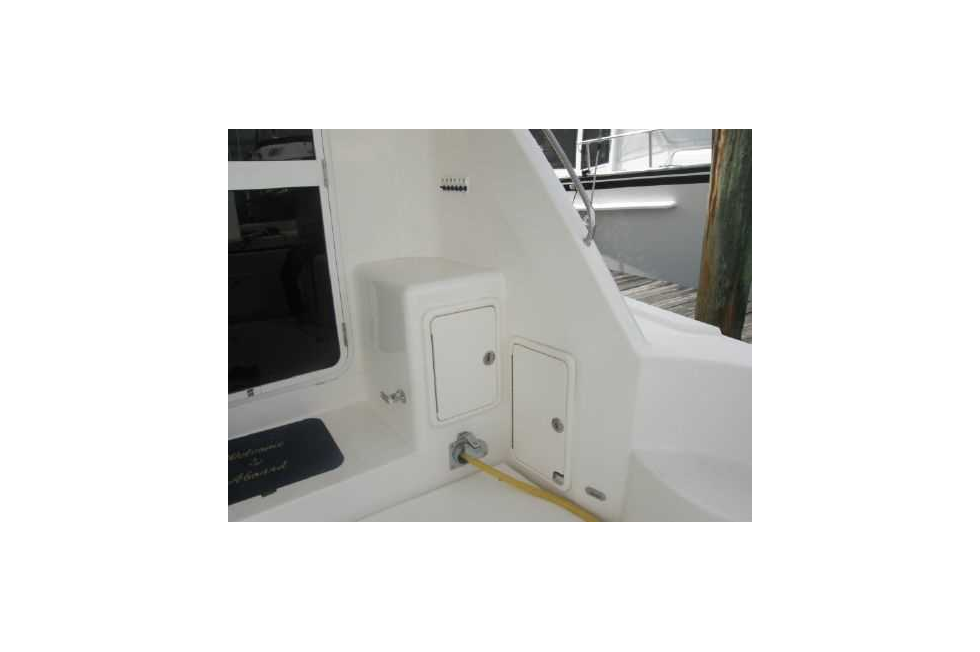

• Dual purpose box locker located starboard forward corner.
• Includes rubbish bin and 4 x PVC containers (bin and containers can not be used simultaneously)
• Engine room access (lockable)
• Fair leads (x 2) rear corners
• Grab rails to assist access to side decks
• GRP moulded locker doors to storage with integral toe kicks
• Hand held shower hot & cold (Fresh water)
• Large removable fishbox, pumpout facility and 2 hatches
• Lighting - flood lights, overhead and courtesy (DC)
• Self draining cockpit to the stern
• Sink with mixer tap (hot and cold), moulded into engine room access door
• Steps to side decks port & starboard
• Tackle locker fitted above cockpit cool box

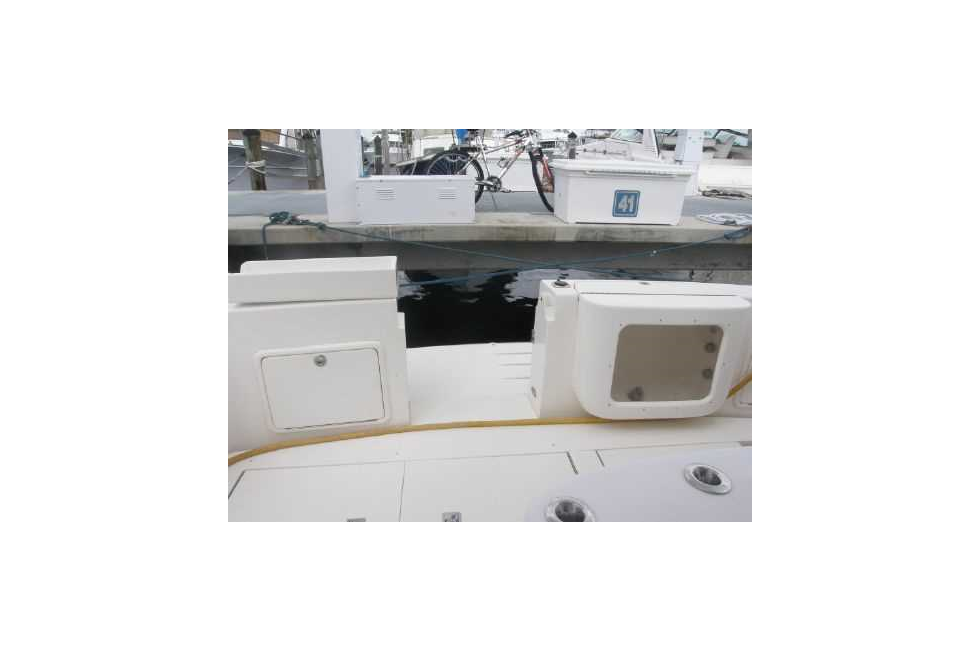

• Transom door GRP opening outwards with lift up bridge
• Wash down tap (fresh water)
• Wash down tap (sea water)

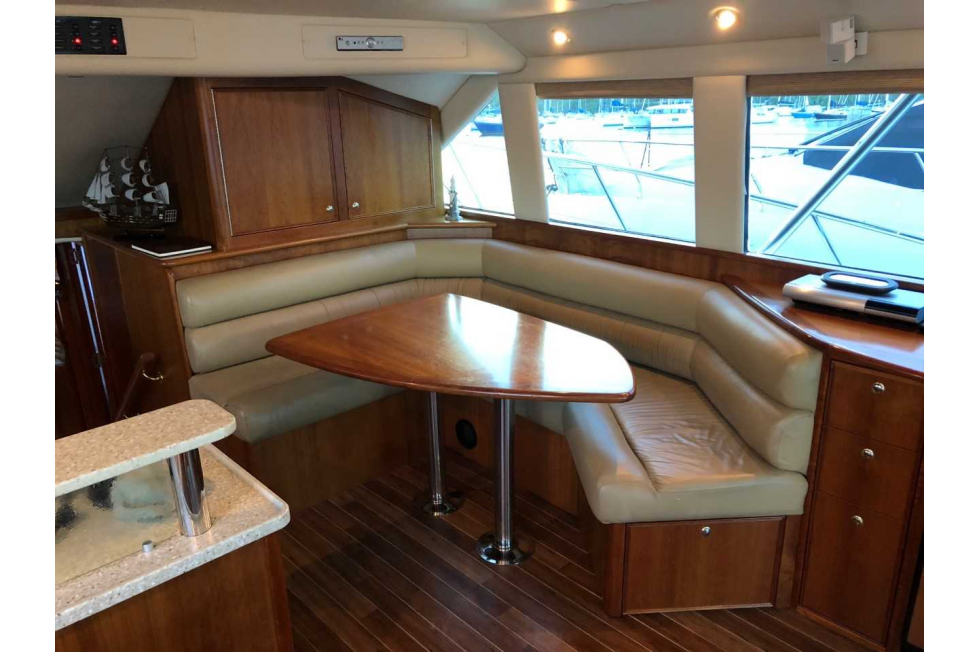

• SALOON • Air conditioning; reverse cycle, 24,000 BTU (split to galley)
• Built in storage lockers to starboard with holders for glasses
• AMTICO Floor
• Central vacuum system with accessories
• Electronics console overhead in saloon
• Fridge/Icemaker Combo
• Handrail, stainless steel, recessed into headliner
• Head lining, vinyl with padding
• High quality Amtico flooring at saloon entry door
• Lighting, overhead (DC)
• Lounge - L shape in premium leather with storage/pull out bed underneath
• Rod storage in headliner electric open & close
• Safety indicator panel for monitoring bilge pumps, high water alarms, sump pump, navigational lights & engine room lights

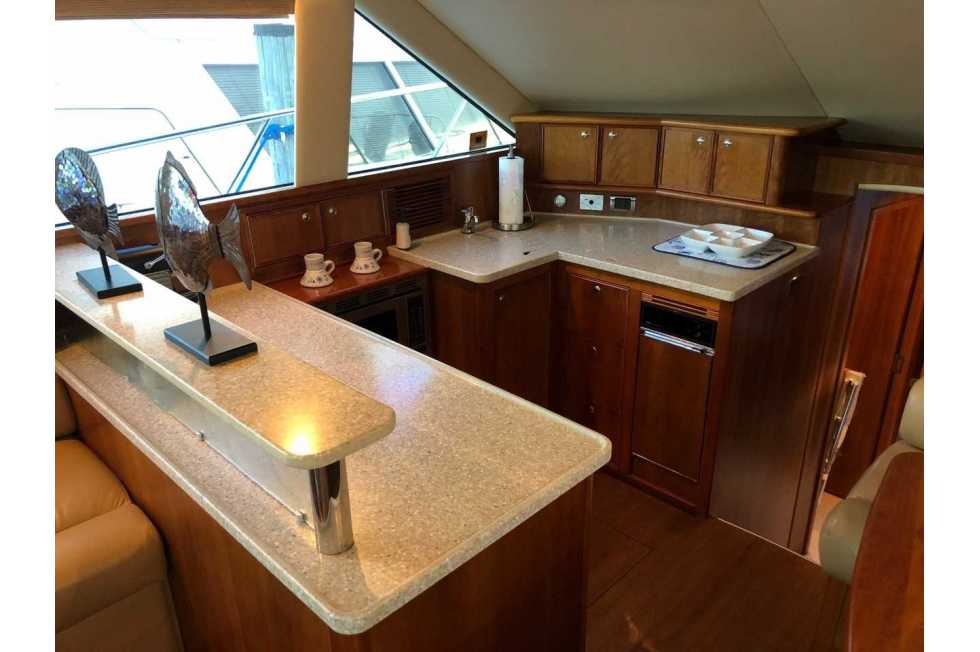

• GALLEY • Access hatch to storage under galley floor with auto lighting
• Exhaust fan
• Garbage bin
• Grab handle at the end of the galley divide
• High quality Amtico flooring
• Lighting, overhead (DC)
• Microwave convection oven
• Overhead lockers
• Raised servery/divider to saloon in solid surface and decorative acrylic
• Recessed electric cooktop, dual element with cover and auto shutoff
• Refrigerator's and Freezers / 2 x 2 Drawer units, refrigerator below, freezer above 110V  (U-Line)
• Single lever mixer tap to galley sink
• Solid surface benchtop with stainless steel sink and cover
• Storage cabinets & drawers below and above bench

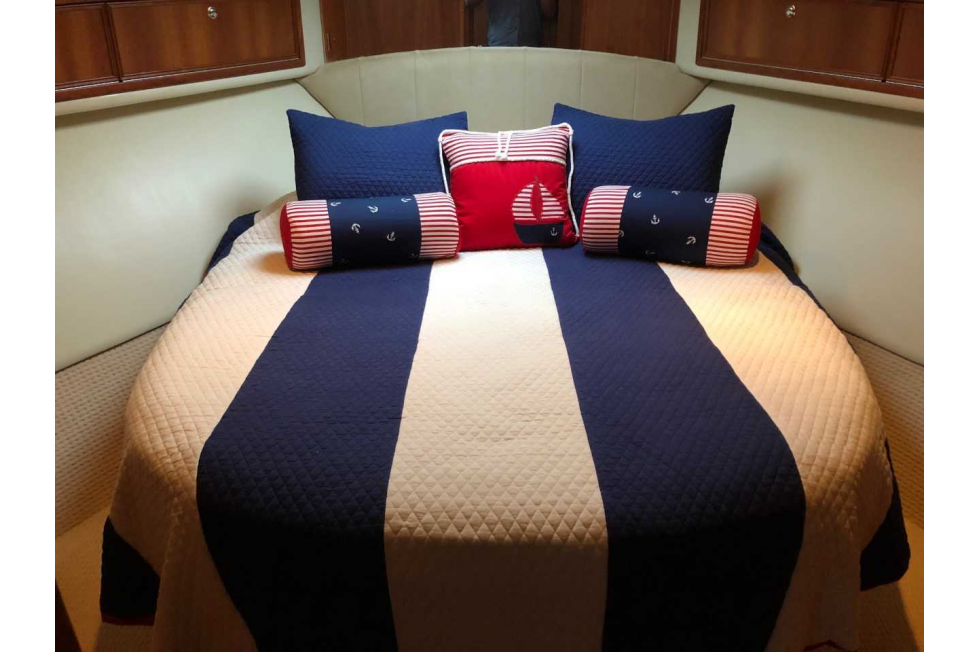

• MASTER STATEROOM-FORWARD • Access to private ensuite with privacy lock
• Air conditioning: 10,000 BTU with reverse cycle, heat (split to ensuite)
• Carpet with underlay
• Hanging lockers (x 2), cedar lined with auto lighting
• Hatch - square white with screen and blind
• Headboard - upholstered
• Hull and head linings, vinyl covered with padding
• Mirror over headboard, full width
• Private entrance door
• Provisions for entertainment system located in stb hanging locker- includes AC power & an aerial connection
• Queen walk around berth with innerspring mattress
• Reading and overhead lighting (DC)
• Storage cabinets outboard with positive locking hardware and gas support struts
• Storage under berth including drawers & gas struts for easy access

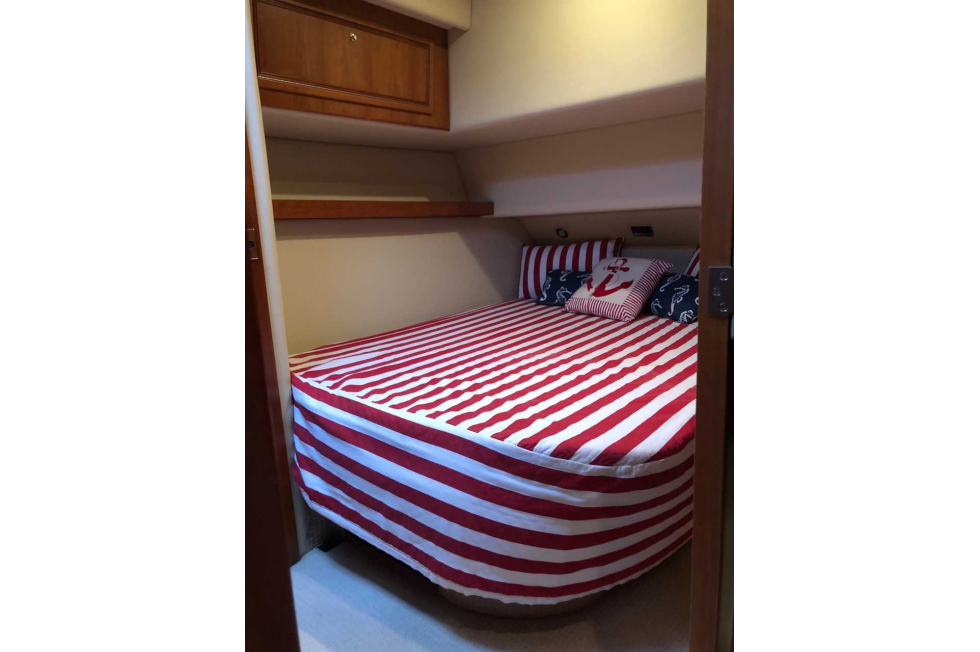

• STATEROOM-STARBOARD • Air conditioning: 12,000 BTU with reverse cycle, heat (split to stbd head)
• Bedside table with drawers
• Built in 3 drawer unit aft
• Carpet with underlay
• Double berth with innerspring mattress
• Hanging locker with cedar lining and auto lighting (DC)
• Hatch - square white with screen and blind
• Headboard upholstered
• Private entrance door
• Reading and overhead lighting (DC)
• Storage cabinets outboard with positive locking hardware and gas support struts

• STATEROOM-PORT • Air conditioning: 4,000 BTU with reverse cycle
• Carpet with underlay
• Hatch - square white with screen and blind
• Private entrance door
• Reading and overhead lighting (DC)
• Storage cabinets outboard with positive locking hardware and gas support struts
• Storage cupboard with drawers and shelf

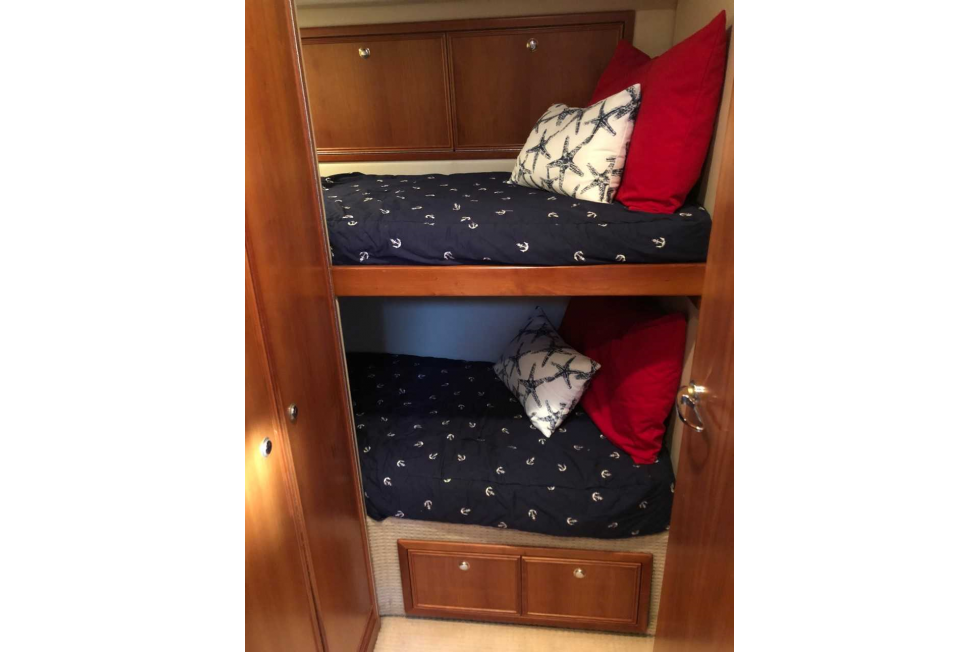

• Upper & lower berths (foam mattresses) with storage under lower berth

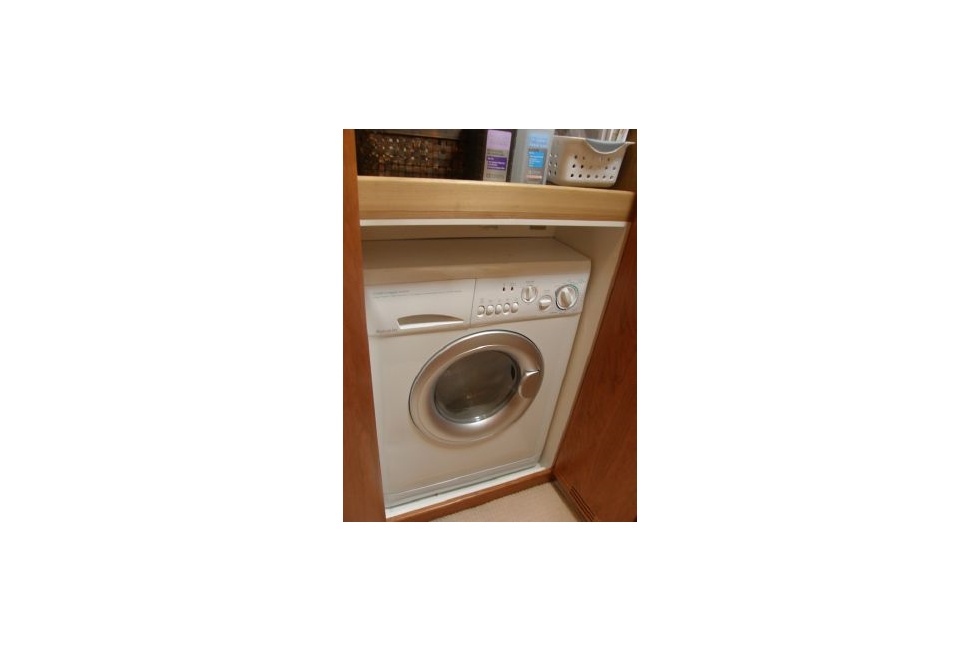

• Washing Machine/Dryer combination

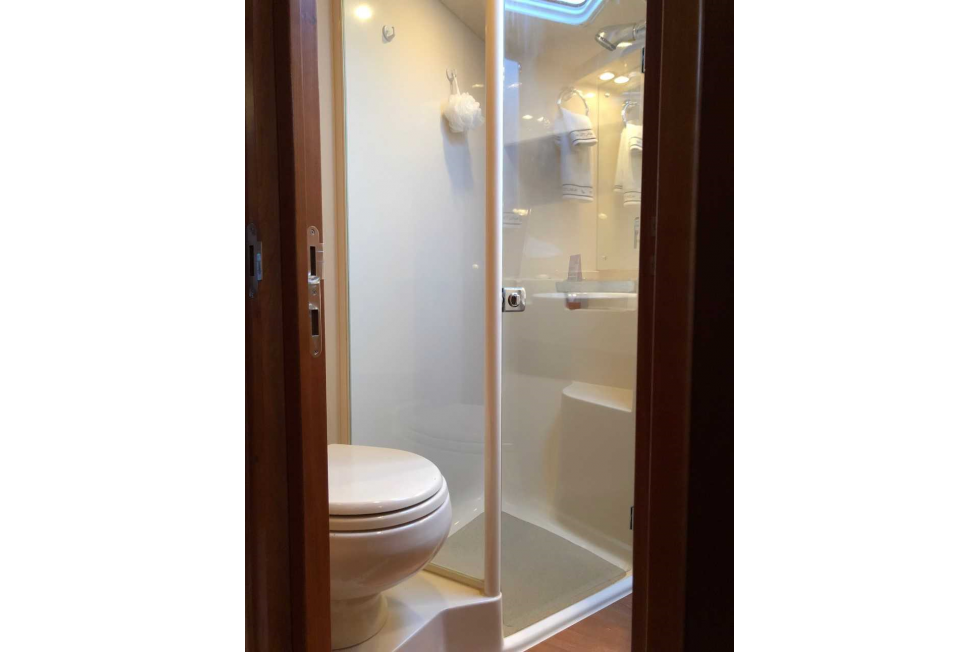

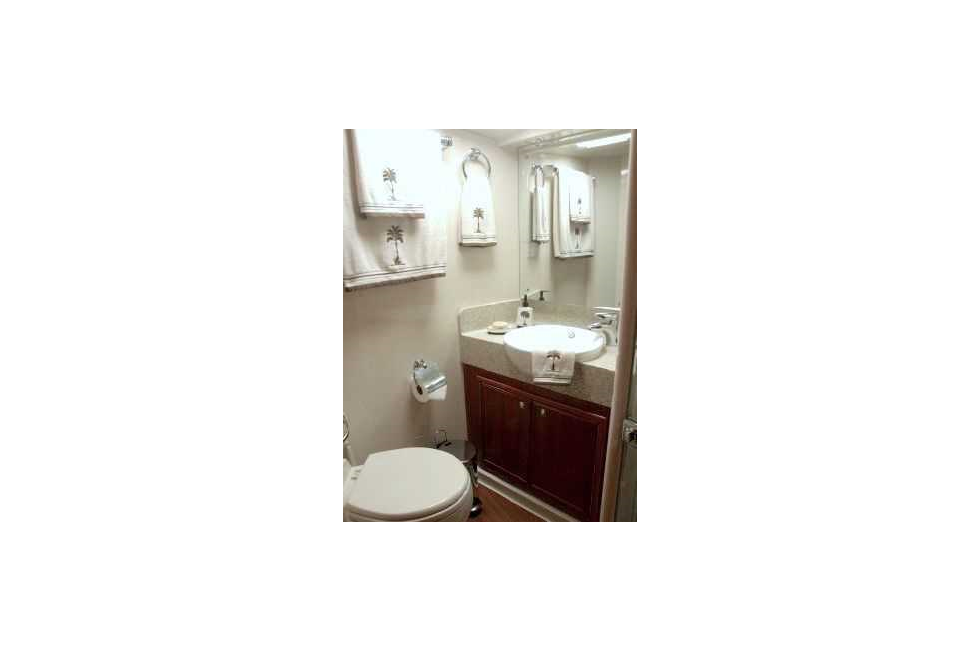

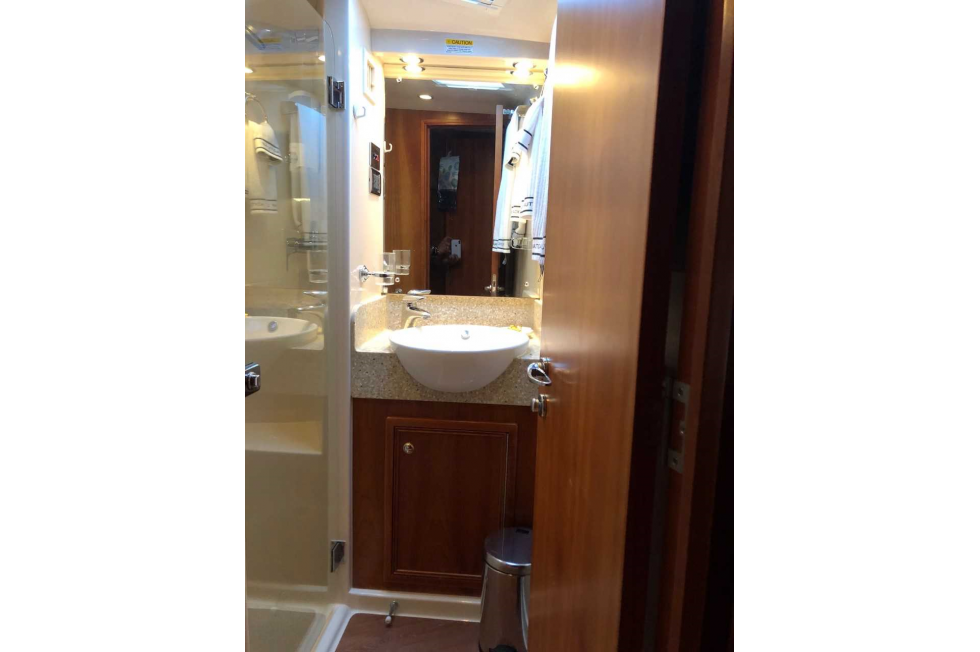

• HEADS-MASTER AND STARBOARD • Air conditioning with reverse cycle, heat. (Split from cabins)
• Entrance to ensuite head from master stateroom
• Entrance to starboard head from stbd cabin and companionway
• Exhaust fan
• Hatch - square white with screen and blind
• High quality Amtico flooring (excluding shower)
• Holding tank level indicator
• Overhead and vanity lighting (DC)
• Shower stall with glass partition, frameless glass door, automatic sump pump and shower head
• Storage locker with shelf under vanity benchtop
• Toilet roll holder, towel holder and accessories
• Vacuflush toilet (fresh water)
• Vanity cabinet above sink with hinged, mirror doors
• Vanity with faucet, semi recessed porcelain sink into solid surface benchtop

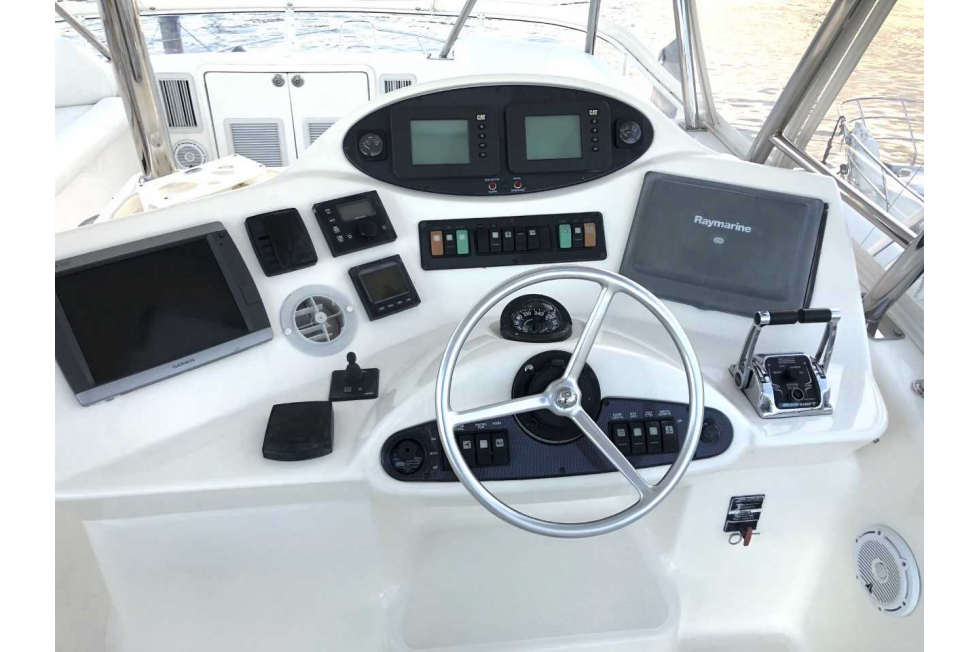

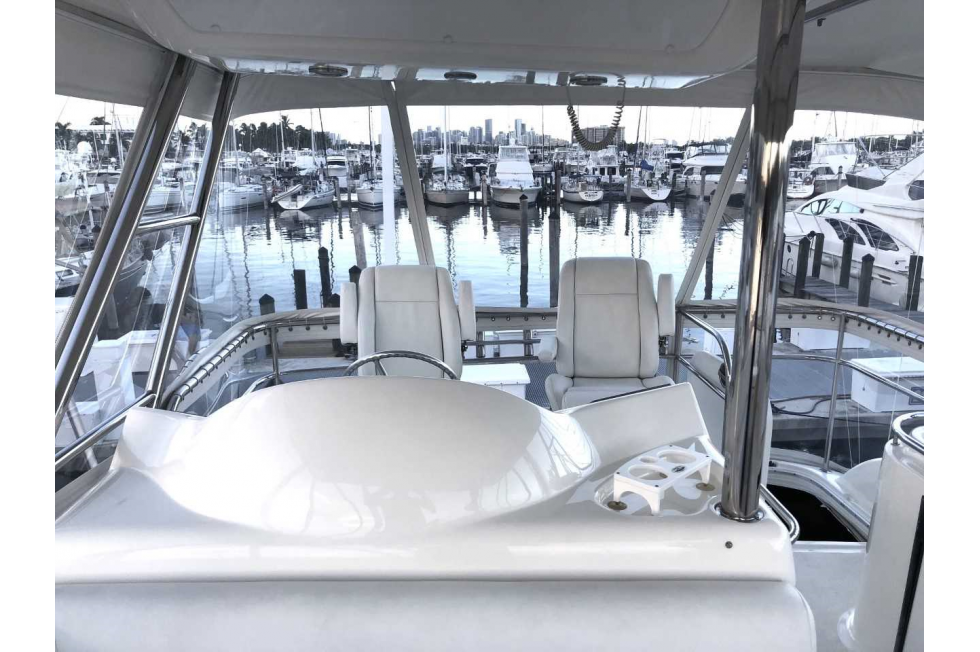

• FLYBRIDGE • AC receptacle weather proof under console
• Autopilot with gyrocompass
• Chain counter
• Compass, 4.75'' with light
• Console aft, with comprehensive electronic engine
• instrumentation and vessel controls
• Courtesy Lights
• Dash cover (White)
• Depth sounder system
• Electronic engine control unit, twin lever gear & throttle
• Helm & companion chair fully adjustable (Pompanette
• Tournament) with footrests
• Helm chair covers x2 (white)
• Helm electronics with 12VDC feed, main circuit breaker protected
• Lockable hatch to flybridge
• Lounge seating forward
• Overhead and courtesy lights
• Rail portside of console at helm
• Rails on rear of flybridge including midrail
• Refrigerator (12V), flybridge port aft
• Safety monitoring panel for bilge pumps, sump pump,
• navigation lights, engine room lights and high water alarm

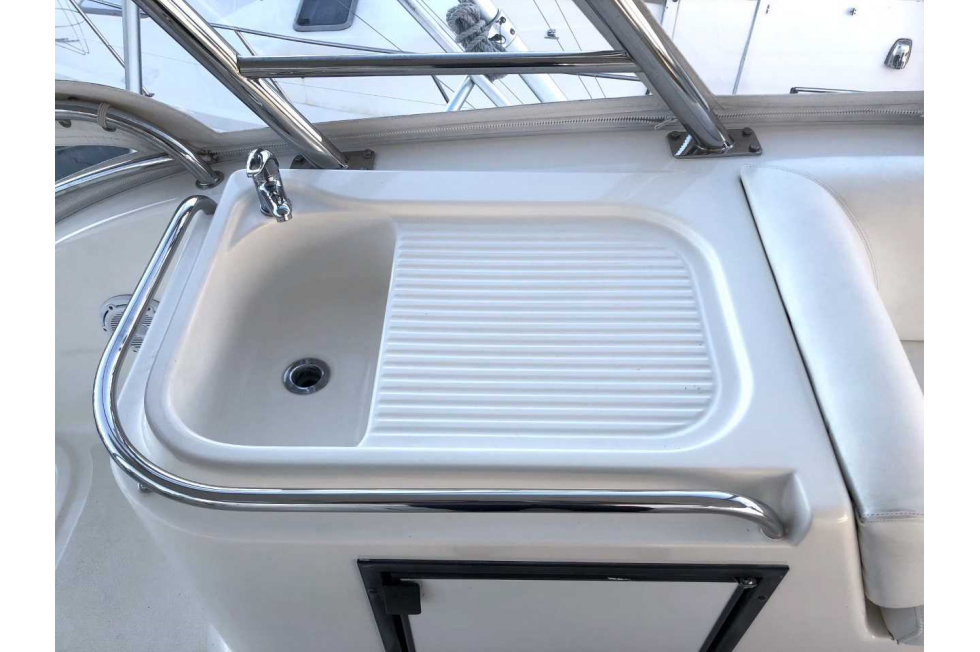

• Sink with drainboard and faucet (hot and cold), moulded into flybridge
• Steering wheel - Destroyer
• Storage lockers (GRP)
• Table (solid surface accented, Bright White) adjustable converts to bed
• VHF radio including aerial
• Wrap around front windshield/deflector
